Indoor Vertical Garden

In its planting stage now, Zenesis House will include a 3-story indoor wall of plants that purifies the air year-round.

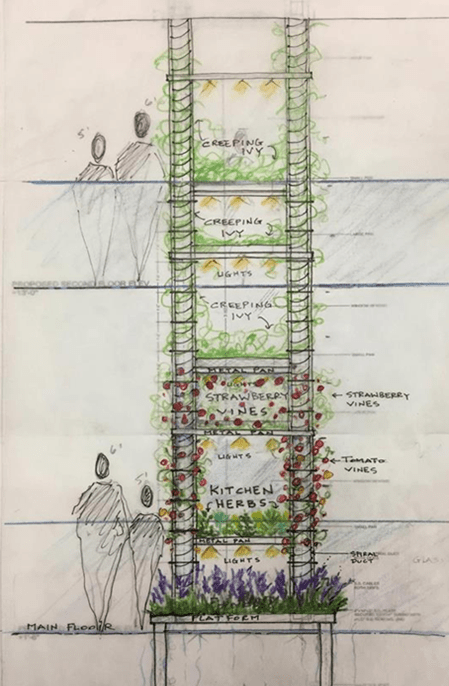

biowall

In the Winter, plants add valuable humidity to the air to keep the indoors comfortable.

While in the Summer, vertical ducts open at the bottom recirculate ambient air exposed to a geothermal-chilled dehumidification system.   Condensation is captured, and added back to the aquaponic system as needed.

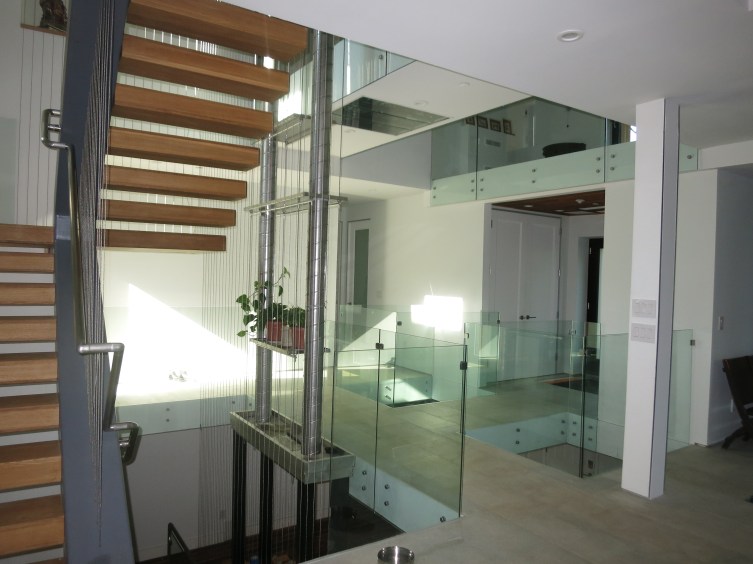

2016-06-24 16.18.55

Vertical ducts are adjacent to the planting area to capture humidified air from plant respiration where it meets our dewpoint control systems (powered by a geothermal chilled water coil), and water is cycled back to the plants.
